Wireless Network
Standards
802.11a/n
5GHz Radio Rate
150Mbps
Antenna
Antenna Design
Panel
Wireless Antenna Frequency Range & Gain
5.170 - 5.875 (GHz) 16 (dBi)
Beamwidth
43 °
Polarization
Dual Linear
Interfaces
RJ45 Ports
(2) 100 Mbps
Number of PoE Ports
1 pcs
PoE Out Standards
Passive PoE
Management
Ethernet
System Specification
Chipset
Atheros MIPS 74Kc, 560 MHz
RAM
64 MB
Storage Memory
8 MB
Power
Power Method
24V Passive PoE
Power Supply
External PoE Adapter
Supported Input Voltage
22 - 26 V DC
Max Power Consumption
8 W
Physical Parameters
Color
White
Material
UV Plastic
Dimensions
294 x 31 x 80 mm
Weight
0.5 kg
Operating Temperature
-30 °C to 75 °C
Environment
Outdoor
Mounting Method
Pole Mount
Package Contains
External Power Supply
Included

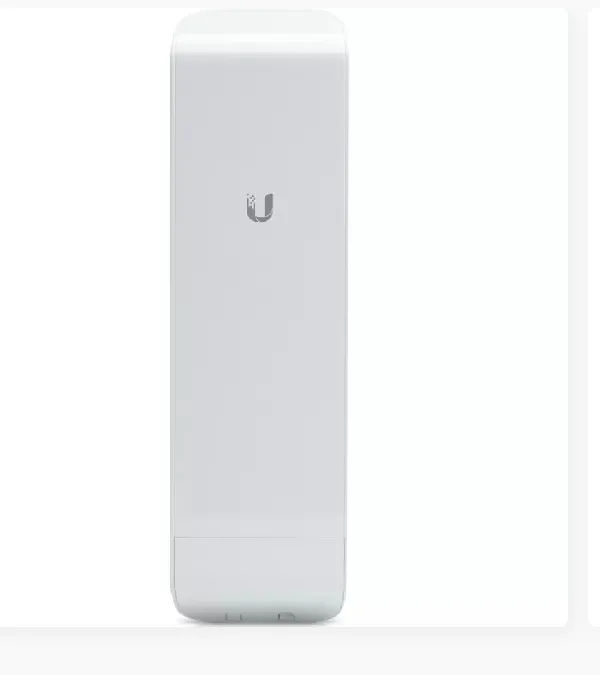

The NanoStation M5 proves that efficiency can still be equated to affordability. Even if it’s low cost, its performance is luxurious. It has a maximum transmission speed of about 300 mbps, allowing it to serve multiple devices at one time. It follows the TDMA (Time Division Multiple Access) protocol, which permits users to effectively schedule time slots in order to maximize the transmission and lower the latency period. It works at a frequency of 5.5GHz, a channel that is not prone to noise and interference. The integrated antenna connects via the 2x2 MIMO technology with a reach of 16dBi, so it’s ideal for complexes or buildings made up of different floors. Paired with QoS, you can easily prioritize bandwidth allocation.
It runs on an Atheros 24KC MIPS chipset with a clock speed of 400 MHz. It has a 32MB RAM and 8MB NAND Flash.
PoE Connection
The NanoStation M5 is equipped with the “intelligent PoE.” This means you can reset it through its power supply, not directly in the unit. This is accomplished via the dual Ethernet port, one of which is dedicated for PoE use. In the process, you’re able to make the most of your electric power and save yourself the hassle of dealing a lot of wires. You can also add an IP camera, which permits you to keep track of your property, among others, through a web-based access.
Various Connectivity Options
The NanoStation M5 can be used as an access point, connecting to hundreds of devices all at the same time, or as a client, which can be connected to other networks through a bridge. The level of flexibility makes this a fantastic and convenient addition to your networking system.
Quick Monitoring Process
The NanoStation M5 is easy to monitor through its strength indicators following the integration of 2 pairs of LEDs.
Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
